Prime RTC RK3566 Chipset 8GB 64GB Storage Dual Band Wi-Fi with 1 Year Replacement Warranty
RK3566 Android Media Box – High Performance with 8GB RAM for Home & Office Use
A compact and powerful Android device built for smooth multitasking, high-quality streaming, and commercial or home entertainment setups. Perfect for apps, media centers, digital signage, and gaming.
Key Features:
🚀 Powerful Processor: Rockchip RK3566 Quad-Core Cortex-A55 chipset for smooth performance.
🎮 8GB DDR4 RAM + 64GB Storage: Seamless multitasking with ample space for apps, media & games.
📺 4K Ultra HD: HDMI output supports up to 4K@60fps for crystal-clear viewing.
🌐 Dual-Band WiFi + Ethernet: Stable and fast internet via WiFi 2.4/5GHz or RJ45 Ethernet.
🔊 High-Quality Audio: HDMI and AV outputs for home theater connectivity.
📦 Compact & Stylish: Small size (90 × 90 × 18.8 mm) but big performance.
⏰ RTC (Real-Time Clock) Support
Maintains accurate system time even during power outages with built-in battery backup.
Ensures reliable scheduling of tasks like content playback, auto power on/off, and stable offline operations—making it essential for digital signage reliability.
🔄 Screen Rotation Support
Supports both automatic and manual screen rotation (0° / 90° / 180° / 270°).
Allows flexible installation in portrait or landscape mode, making it ideal for various display setups like kiosks, menus, and advertising panels.
⚡ Auto Boot & App Launch
Automatically powers on and launches the selected signage or CMS application.
Eliminates manual intervention, ensuring seamless operation in unattended environments like retail stores or public displays.
🛠 Designed for 24/7 Usage
Built for continuous operation in commercial and industrial environments.
Delivers stable performance, long lifespan, and reliability for non-stop usage without overheating or lag.
🖐 Multi-Touch Screen Support
Compatible with capacitive touch panels for smooth and responsive interaction.
Perfect for interactive kiosks, self-service machines, and digital displays requiring multi-touch functionality.
🛡️ Why Buy from Andbox.in?
🚚 Fast Shipping – Dispatched within 24 hours
🔁 15-Day Hassle-Free Returns
💵 Cash on Delivery Available – ₹100 Prepayment
🧾 GST Invoice for every order
🧰 OEM & Bulk Orders Supported
🛡️ 1 Year Warranty – Hassle-free support
Prime RTC RK3566 8GB 64GB Hardware:-
- ChipsetRK3566 Quad-Core 64bit Cortex-A55 @1.8GHz
- GPUMali-G52 2EE
- FLASHEMMC 64GB
- RAM8GB

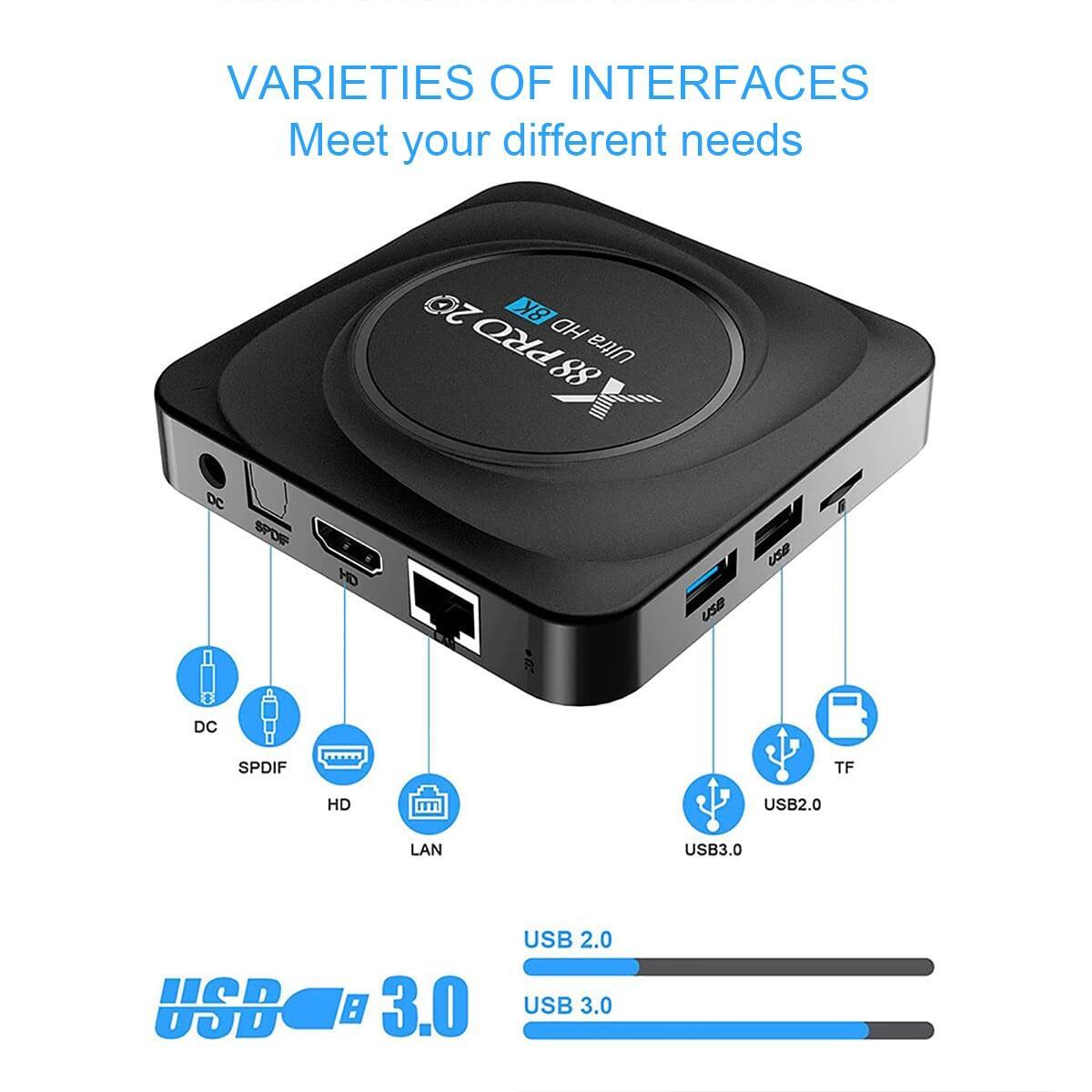

- USB1 Type-A USB3.0,1 Type-A USB2.0
- LANEthernet:10/100M/1000M standard RJ-45
- Wireless2.4G /5G dual-band Wifi 802.11 a/b/g/n/ac
- BluetoothV4.2

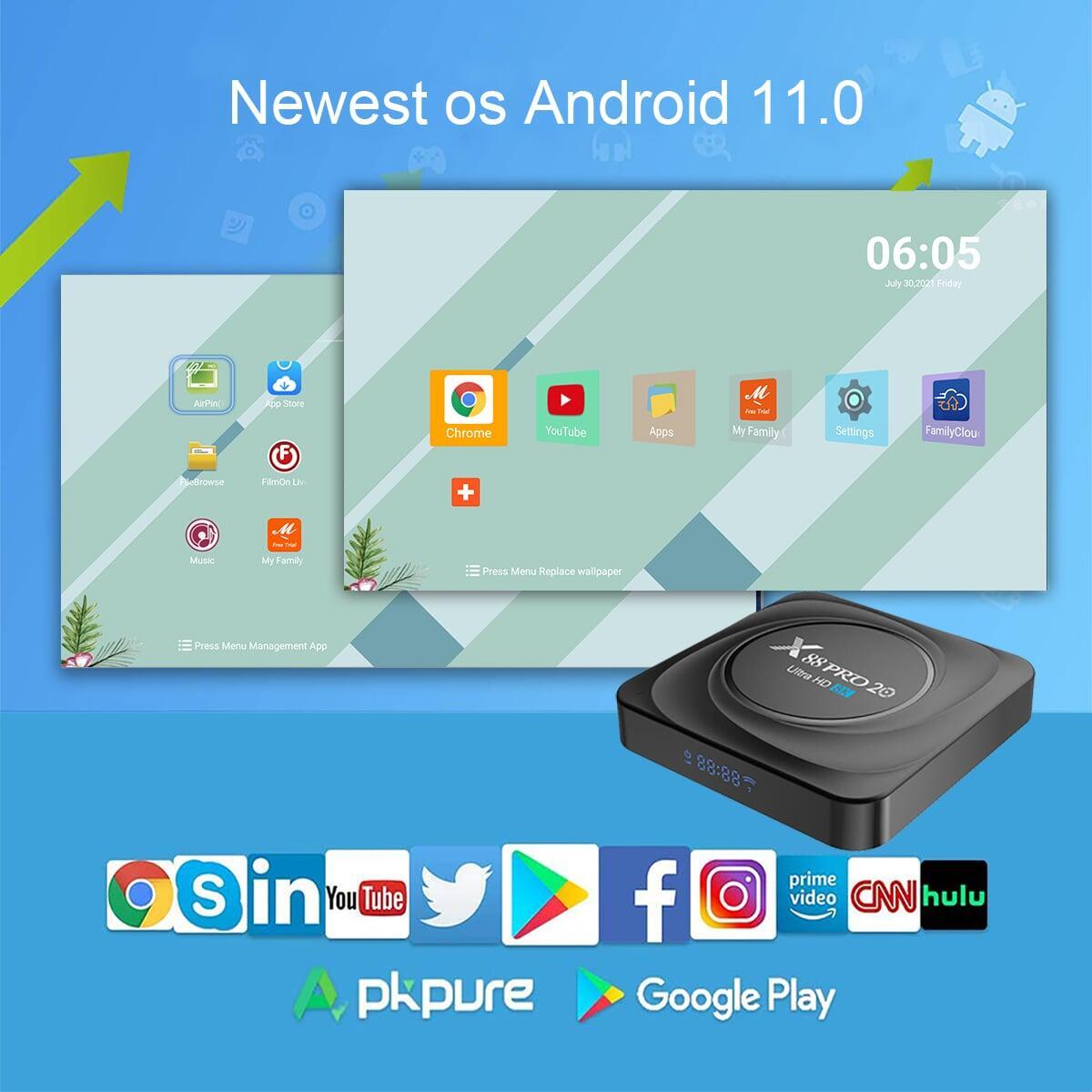

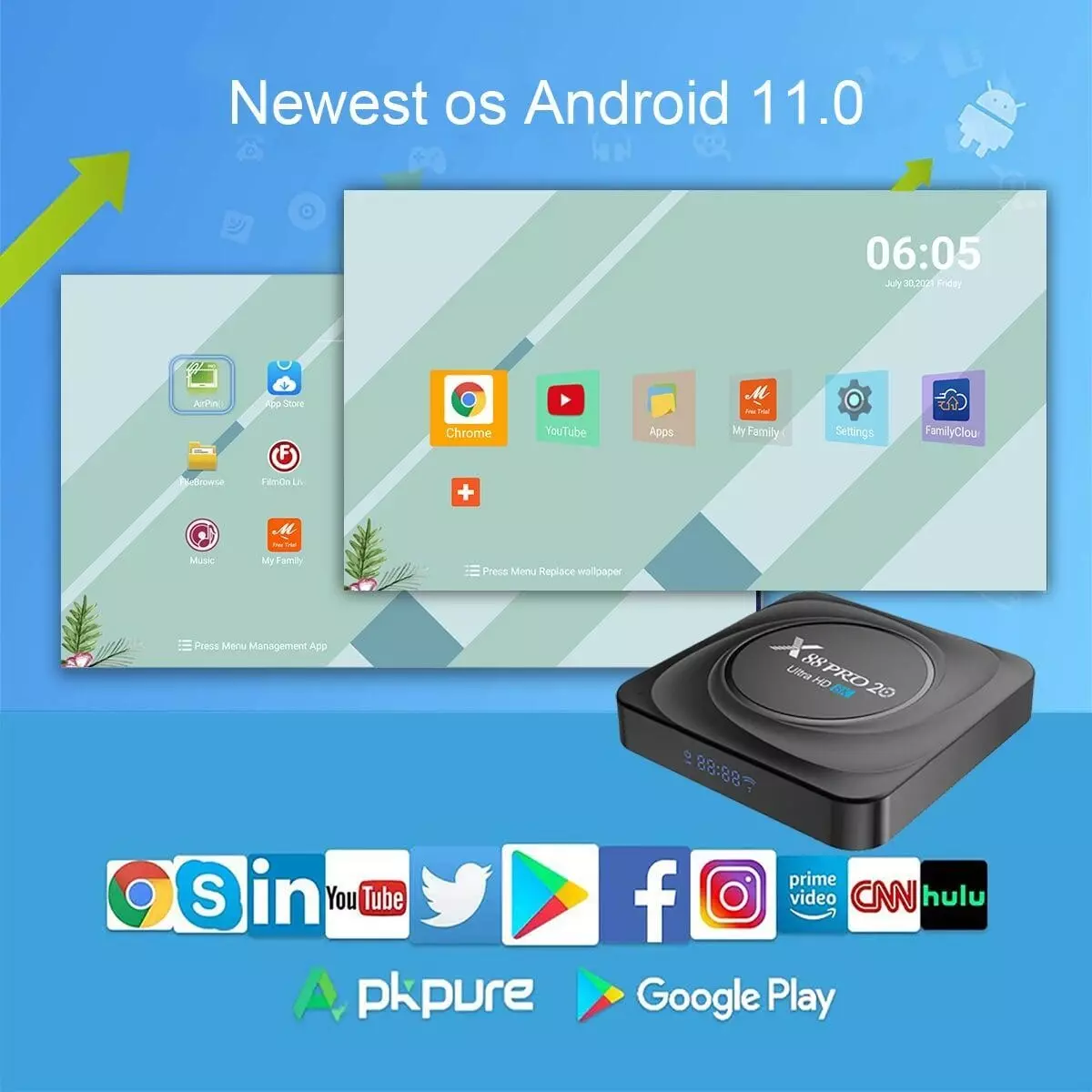

- OSAndroid 11.0
Main Features:-
- Card readerMicro SD cards ,Maximum support 64G
- DisplayPortHDMI
- HDMIHDMI 2.0a for 4k@60Hz
- Power Indicator (LED)Power ON :blue; Standby :Red
- RemoteIR
- Power SupplyINPUT：100-240V 50/60HZ OUTPUT:DC 5V/2A
- Operating temperature﹣10℃ to 45℃
- Support Decoder formatH.265HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps
- Support Media formatAvi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
- Support Music formatMP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE
- Support Photo formatHD JPEG/BMP/GIF/PNG/TIFF
- HDD file systemFAT16/FAT32/NTFS
- Support SubtitleSRT/SMI/SUB/SSA/IDX+USB
- High Definition video output4K (4096x2160 pixel )
- OSD type of languagesEnglish/French/German/Spanish/Italian/ etc multilateral languages
- Mouse/ KeyboardSupport mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
Software Specifications
- Network FunctionKODI 18.1 ,Neflix,Vudu,Skype chatting,Picasa,Flicker,Youtube,Facebook,Online movies,etc
- Other featureFree Internet searching,thousands of android applications,many kinds of games,etc.
- CertificationCE,FCC,ROHS

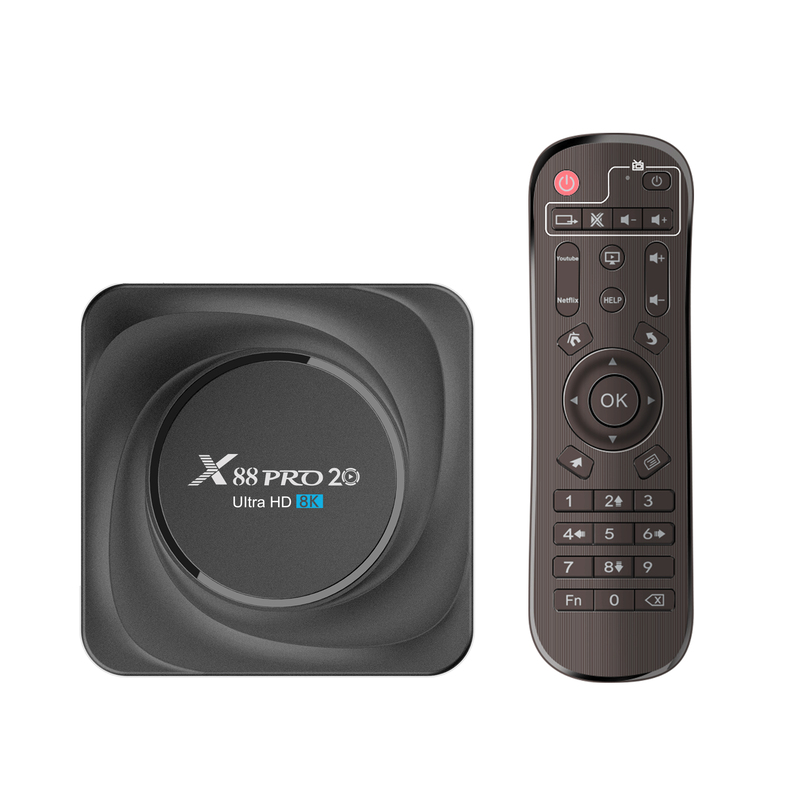

- AccessoriesPower adaptor,HDMI cable,user manual ,remote
- OptionSupport mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle,
