10.4” IPS Touch Monitor
Bullet Points (Product Features)
🖐️ 10-Inch Capacitive Touchscreen – Responsive 10-point capacitive touch panel for smooth interaction. Plug and play with USB touch interface – no drivers required for most systems.
🖥️ HD IPS Display – 1280×800 resolution with wide 178° viewing angles and vivid color reproduction. Perfect for monitoring, programming, or multimedia display.
🎮 Multiple Input Interfaces – Equipped with HDMI, VGA, and AV inputs. Compatible with PC, laptop, Raspberry Pi, CCTV, gaming consoles, and other devices.
🔌 USB Powered & Plug and Play – Low-power design with USB-powered operation. No external adapter required when connected to supported devices.
🧳 Compact & Versatile Design – Lightweight, slim body with built-in stand holes and mounting bracket. Ideal for POS systems, DIY projects, security displays, or industrial environments.
Main Features
- Screen size10.4inch(24.89*19.6mm)
- Response time5ms
- Panel TypeIPS
- Backlight typeLCD touch screen
- Contrast ratio1000:1
- Screen ratio4:3
- Resolution1024×768
- Color depth16.7M
- Touch screencapacitance (multi touch)
- Display brightness250 (cd/m2)
- Visual angle178 °/178°
- Case size248.9*196*13.08mm
- Touch methodFinger or dedicated stylus
- Touch interfaceUSB interface
- DisplayVGA driver version
- Applicable industriesindustrial and commercial
- Working temperature'-10ºC~50 ºC
- Environmental humidity≤ 80%

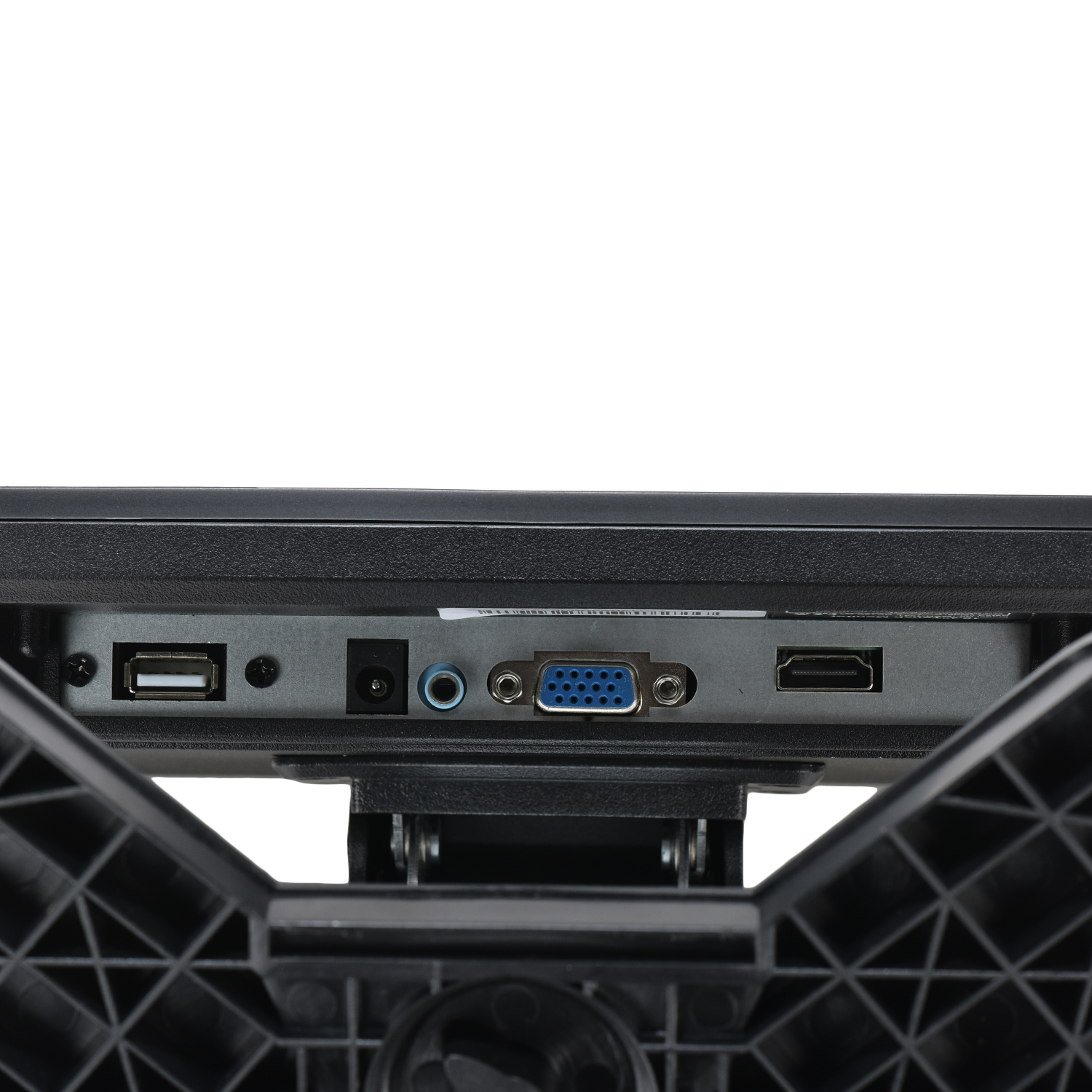

- InterfaceHDMI, VGA, headphones, DC, USB interface
- Reference systemWin7 8 10, Android system,Raspberry pie, Linux system
- Standard configuration list:adapter, VGA cable, power cable, HDMI cable, USB 2.0 cable, capacitor pen, manual
